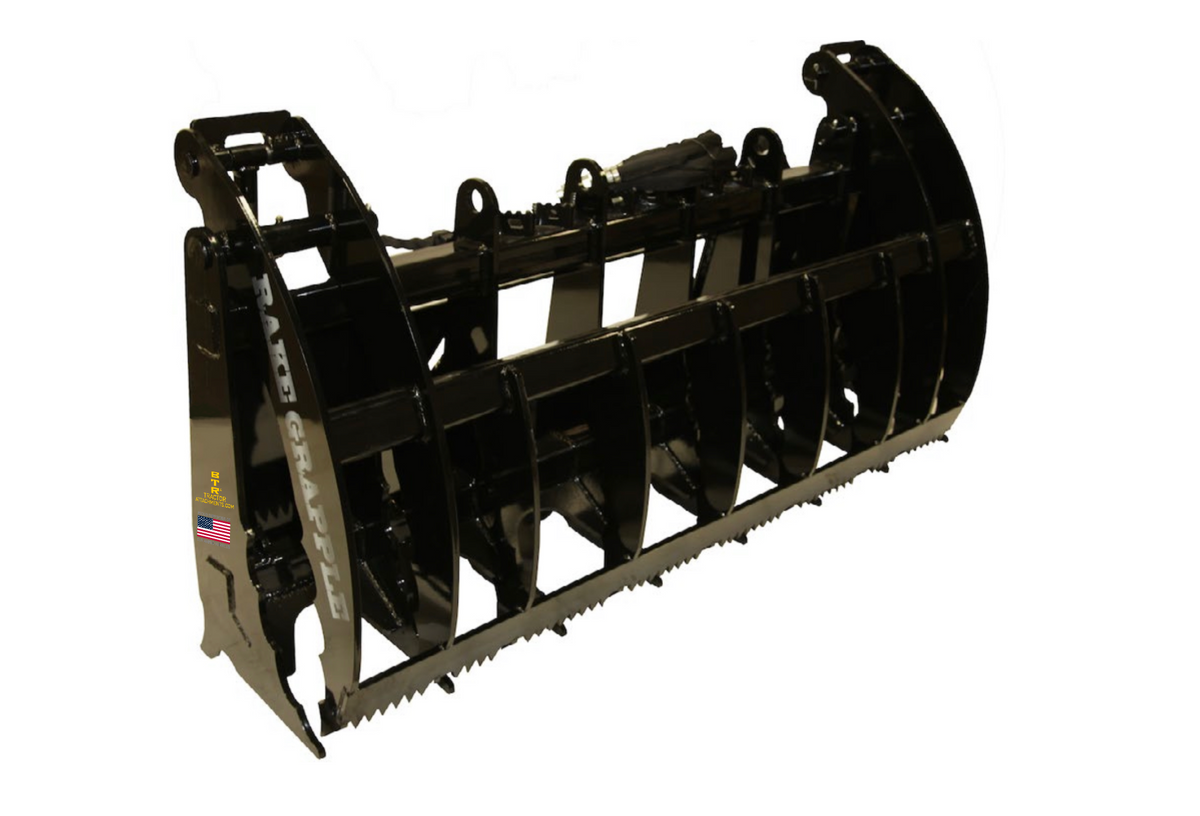

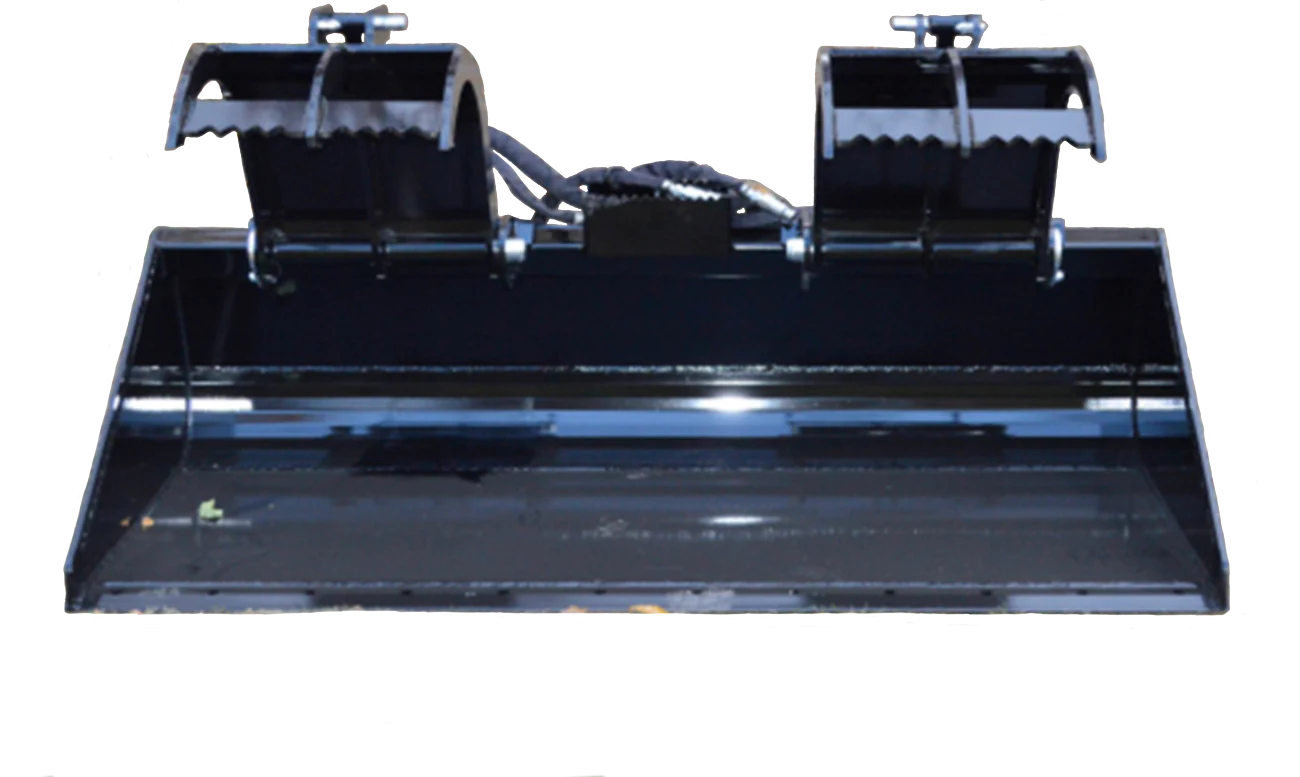

Bigtoolrack Heavy Duty Low Profile Bucket With Grapple

Name: Bigtoolrack Heavy Duty Low Profile Bucket With Grapple
Brand: BIGTOOLRACK
SKU: BTR-TD9033270-LPBG
Price: 4299.98 USD
Availability: InStock

$4,299.98

Size:60" Heavy Duty Low Profile Bucket With Grapple

Variant

Quantity:

Description
Specifications
Reviews

Description

Low profile bucket will be useful in many different applications.

This Heavy Duty Low Profile Bucket from is perfect for moving materials. Ideal for digging and grading dirt or gravel.

Available in 6 sizes
3,000 PSI Max
Proudly made in the USA

Specifications

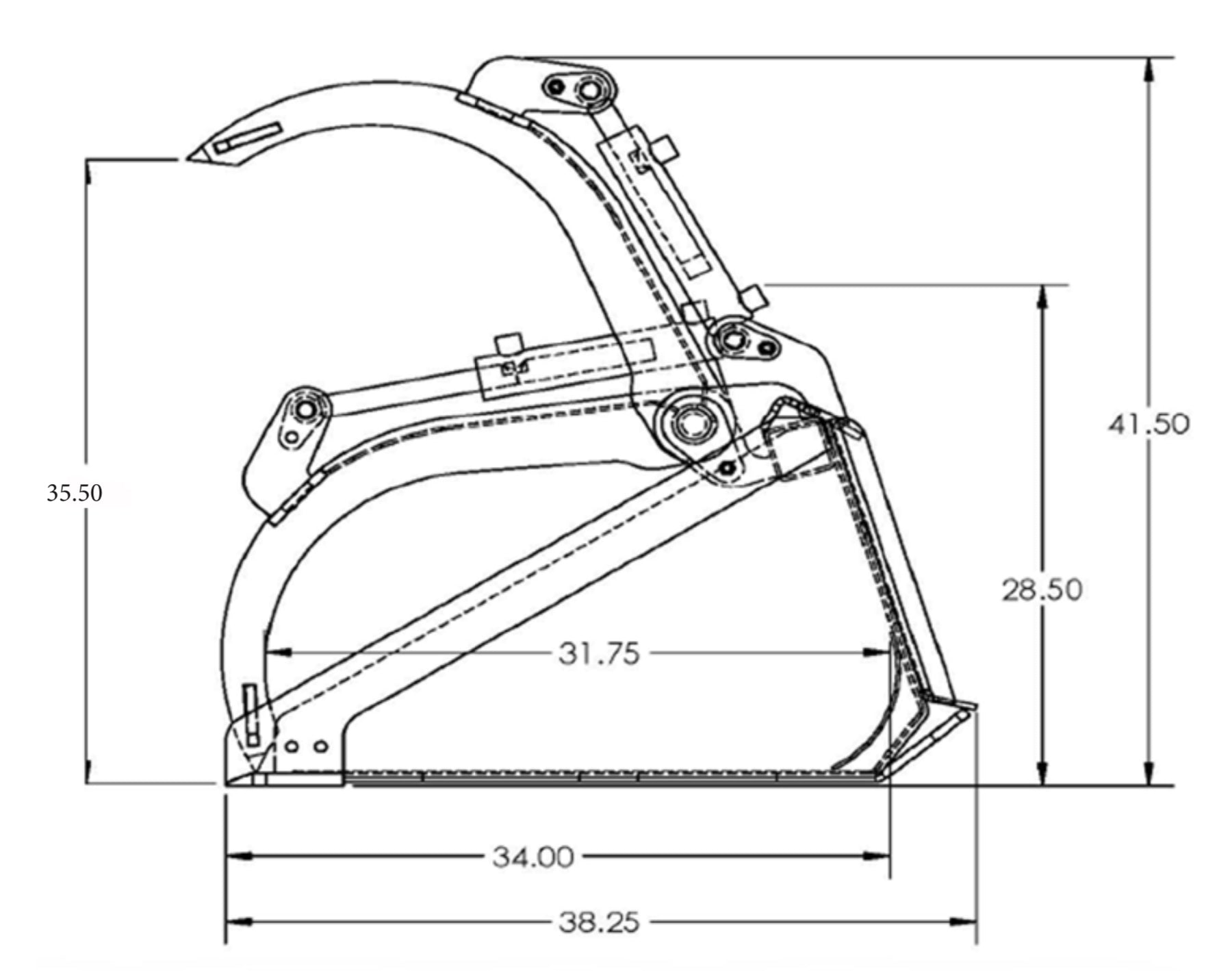

Size	60"	68"	72"	78"	80"	84"
Overall Width	60"	68"	72"	78"	80"	84"
Overall Height (Closed	28 1/2"	28 1/2"	28 1/2"	28 1/2"	28 1/2"	28 1/2"
Overall Depth	38 1/4"	38 1/4"	38 1/4"	38 1/4"	38 1/4"	38 1/4"
Grapple Opening	35 1/2"	35 1/2"	35 1/2"	35 1/2"	35 1/2"	35 1/2"
Depth of Bucket	34"	34"	34"	34"	34"	34"
Main Body Thickness	3/16"	3/16"	3/16"	3/16"	3/16"	3/16"
Side Cutting Edge	3/8" Grade 50	3/8" Grade 50	3/8" Grade 50	3/8" Grade 50	3/8" Grade 50	3/8" Grade 50
Wear Bars	1/2" Grade 50 - 10" Wide	1/2" Grade 50 - 10" Wide	1/2" Grade 50 - 10" Wide	1/2" Grade 50 - 10" Wide	1/2" Grade 50 - 10" Wide	1/2" Grade 50 - 10" Wide
Mounting Plate	5/16" HR Steel	5/16" HR Steel	5/16" HR Steel	5/16" HR Steel	5/16" HR Steel	5/16" HR Steel
Cutting Edge	3/4" x 6"	3/4" x 6"	3/4" x 6"	3/4" x 6"	3/4" x 6"	3/4" x 6"
Grapple Arms	1/2" Garde 50 Laser Cut	1/2" Garde 50 Laser Cut	1/2" Garde 50 Laser Cut	1/2" Garde 50 Laser Cut	1/2" Garde 50 Laser Cut	1/2" Garde 50 Laser Cut
Cylinders	2" x 8" Welded	2" x 8" Welded	2" x 8" Welded	2" x 8" Welded	2" x 8" Welded	2" x 8" Welded
Hydraulic Couplers	Flat Face	Flat Face	Flat Face	Flat Face	Flat Face	Flat Face
Hydraulic Hoses	3/8"	3/8"	3/8"	3/8"	3/8"	3/8"
PSI Max	3,000 PSI	3,000 PSI	3,000 PSI	3,000 PSI	3,000 PSI	3,000 PSI
Pivot Points	Grease Zerks	Grease Zerks	Grease Zerks	Grease Zerks	Grease Zerks	Grease Zerks
Struck Capacity (cu. ft)	13.2	15	15.9	17.5	17.75	18.5
Heaped Capacity (cu. ft)	15.8	18	19	20.5	20.12	22.25
Weight	827 lbs	867 lbs	872 lbs	917 lbs	952 lbs	972 lbs
Overall Heights (Open)	41 1/2"	41 1/2"	41 1/2"	41 1/2"	41 1/2"	41 1/2"
