PTO Link™ HD System *FREE SHIPPING*

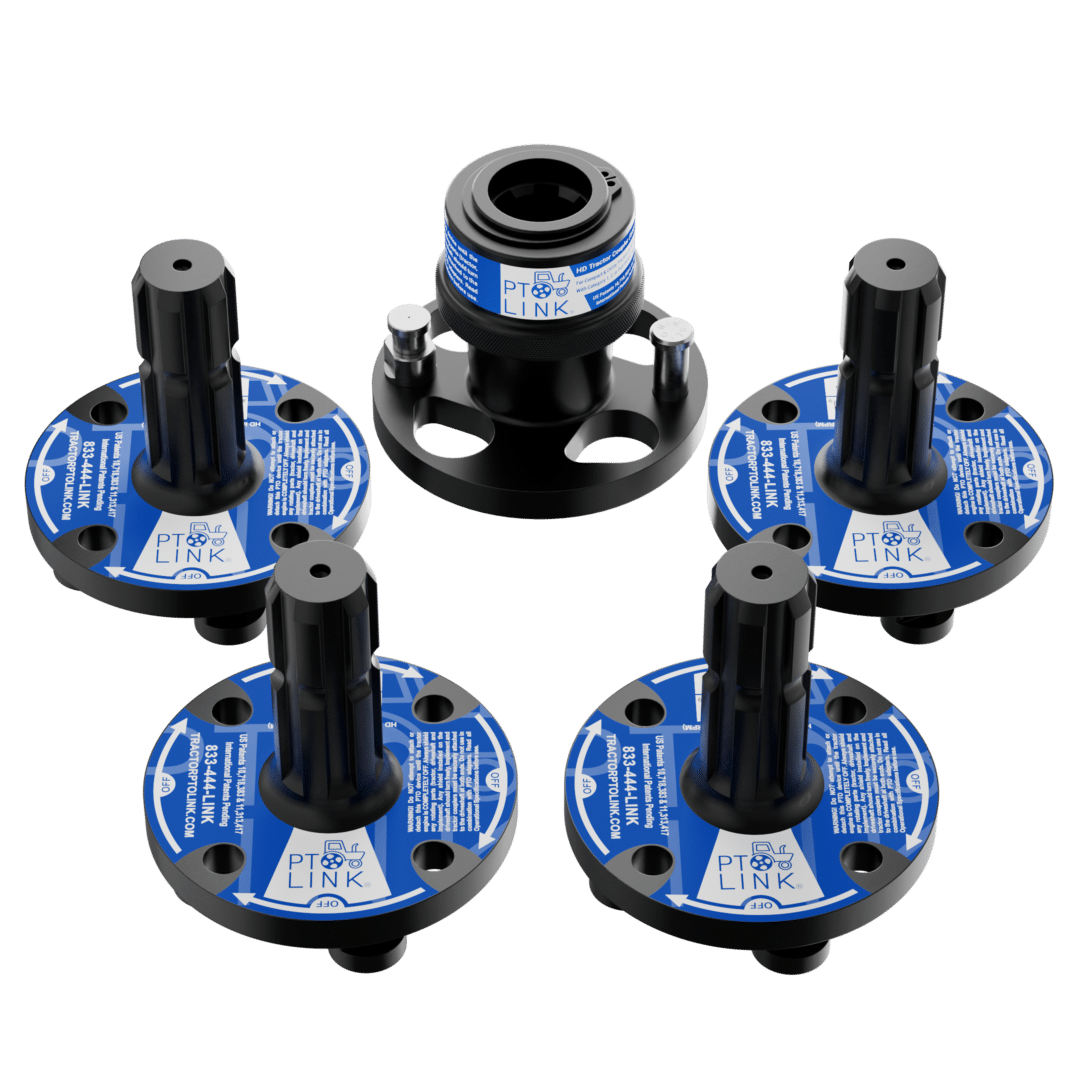

The PTO Link™ HD system is specifically designed to work for larger tractors 35 HP to 130 HP, and recommended for all tractors using mowers/shredders 8 feet or wider and/or flex-wing/batwing rotary cutters. The PTO Link™ system is designed to quickly and safely connect/disconnect tractors and implements at the PTO… in seconds! The PTO Link™ is the original, universal quick-connect system that consists of two interconnecting plates (female and male). For best results, every tractor should have the Tractor Plate (Female) installed and every implement with a PTO driveline should have an Implement Plate (Male) installed.

Designed for:

• Any compact or utility tractor (from 35 HP up to 130 HP) with Category 1 or 2 implements
• Any pull-behind implements, including flex-wing or batwing rotary cutters
• Tractor owners who tend to be rough on their equipment
• Standard PTO spline length (3″ and longer)
• High Torque (>650 ft.lbs) scenarios or with heavy duty implements (e.g., stump grinders, balers, augers, flail mowers, water pumps, large tillers) where reverse torque is common
  • Kubota B Series
  • Kubota BX Series
  • Kubota LX Series
  • Kioti CS Series & DK Series (Cat 1)
  • Yanmar SA Series
  • John Deere 2520
  • New Holland Workmaster 25 S
  • Cub Cadet 6284D
  • Bad Boy 3026
  • LS MT122 & MT125
  • Mahindra Models 1526 & 1626
  • Massey Ferguson 1010, 1020, 1030 & 1035

Note: The HD System adds 5 inches to the implement’s driveline. See FAQ #5 and #6 for driveline measurement instructions and video.

For safety, the female or male mating plate components of the HD System are NOT compatible nor interchangeable with the SD or Compact Systems!

• Works with rear 6-spline 540 RPM PTO for tractors 35 HP up to 130 HP
• Designed for all tractors using mowers/shredders 8 feet or wider and / or flex-wing/batwing rotary cutters
• Easily connect your mower, shredder, tiller or any PTO driven implement in seconds!
• Simple one-step installation for each plate and easy removal. No special tools or extra installation hardware required (i.e., no set screws, snap rings or retaining clips)
• Built to last (AISI 4140 hardened alloy steel with QPQ^SM finish)
• Safety Plunger Pin included with every tractor (female) plate (extras ordered separately)
• When fully installed, the PTO Link™ HD system adds approximately 5 inches to the overall length of the driveline.
• The PTO Link™ is NOT an adapter. To be in compliance with ASABE standards, do not use the PTO Link™ system in combination with PTO adapters.
• Our limited warranty covers all manufacturing defects in materials or workmanship of all PTO Link™ parts for one year from the date of purchase.
• Dimensions:
  • HD Tractor (Female) Plate (4.75” W x 3.875” H)
  • HD Implement (Male) Plate (4.75” W x 5” H)
• Weight:
  • HD Tractor (Female) Plate: 4 lbs, 3 oz
  • HD Implement (Male) Plate: 4 lbs, 5 oz
  • Weight will vary depending on the kit

As an important safety precaution, be sure to turn off tractor’s engine during installation, shield any rotating parts and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is extremely important and every precaution should be taken.
